EntroPad - Antimicrobial Access Control Reader with Keypad
EntroPad Access Control Reader with Keypad
  • Load image into Gallery viewer, EntroPad - Antimicrobial Access Control Reader with Keypad
  • Load image into Gallery viewer, EntroPad Access Control Reader with Keypad

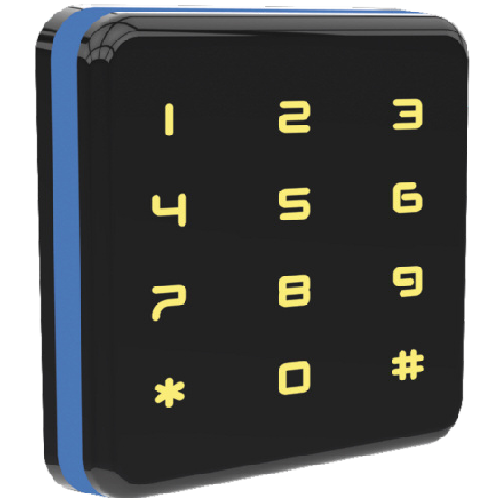

EntroPad - Antimicrobial Access Control Reader with Keypad

Regular price
Sale price
Regular price
Please check availability
Unit price
Shipping calculated at checkout.

EntroPad are highly versatile, contactless, Smart Card Readers, Keypads and Request to Exit buttons.  EntroPad compliments the Remsdaq EntroSeries range of Access Control Devices and Accessories.  EntroPad have built in Antimicrobial protection, independently tested to ISO 22196:2011, to prevent the spread of bacteria and contaminations.  EntroPad are access control system agnostic meaning they can be used as alternative readers for other Access Control Systems.

Suitable for all EntroWatch and EntroStar installations


  • Antimicrobial Properties
  • Contactless Smart Card Reader
  • Capacitive Touch Numbered Keypad
  • Wiegand Communications Interface
  • Multi-Colour Light Band
  • Up to 80mm read range
  • Easy Installation
  • Enhanced Security

Specifications - view product specification

Operating Standards 13.56MHz ISO 14443A, ISO 15693
Compatibility MIFARE Ultralight® MIFARE Ultralight C®, MIFARE® Classic,MIFARE® Classic EV1, MIFARE Plus®, MIFARE® DESFire,MIFARE DESFire® EV1, MIFARE® DESFire® EV2, iCLASS®, PicoPass™, EntroPass Secure
Functions / Distance Read only CSN or EntroPass Secure ID / Up to 8 cm (MIFARE® Classic)
Communications interface  Wiegand
Connections RJ45 Up to 100m using shielded CAT 5E cable (Optional RJ45 to 9 PIN terminal block adapter)
Light indicators  Multi-colour light band
Audio indicators  Piezoelectric sounder
Power requirements  Typically 120 mA @ +12V DC, Nominally +12V DC (8V to 16 V DC)
Dimensions  100mm x 100mm x 22mm
Environmental Storage/Operating: -40° C to +70°C Humidity: Up to 93% (non condensing at +40° C)
Protection / Housing Rating IP 65 / UL94 V-0
Certifications EMC EN50130-4, EN55032 (Access Control) EN301 489-3v1.6.1 (EN301 489-1v1.9.2) (Radio Equipment) Radio EN 302 291-2 v1.1.1 Safety (CE) EN60950-1, EN 60950-22 Environmental  EN 60529, rated to IP65 Designed to be compliant to UL294
Mounting Flush wall mounting using UK pattress box, US switch box or direct to wall.  Optional gasket available for external installations.
